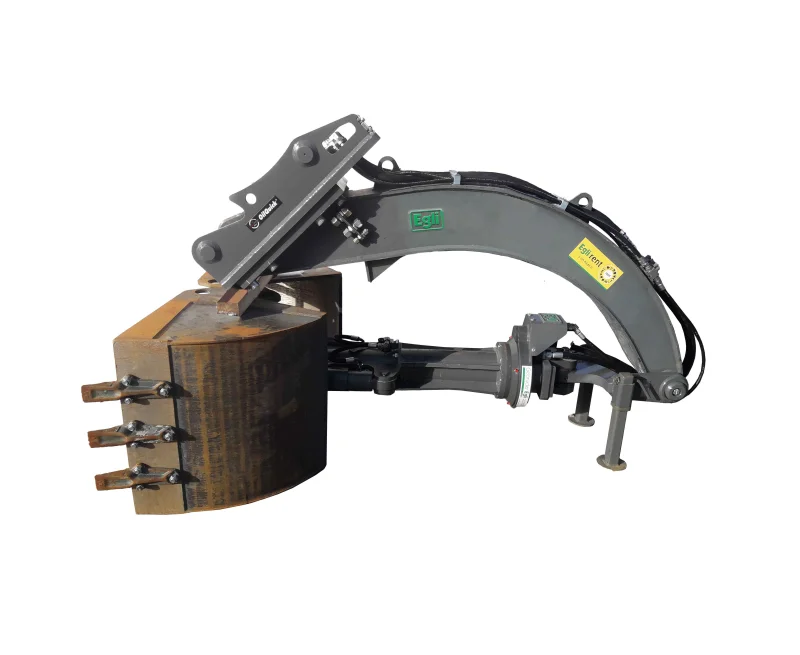

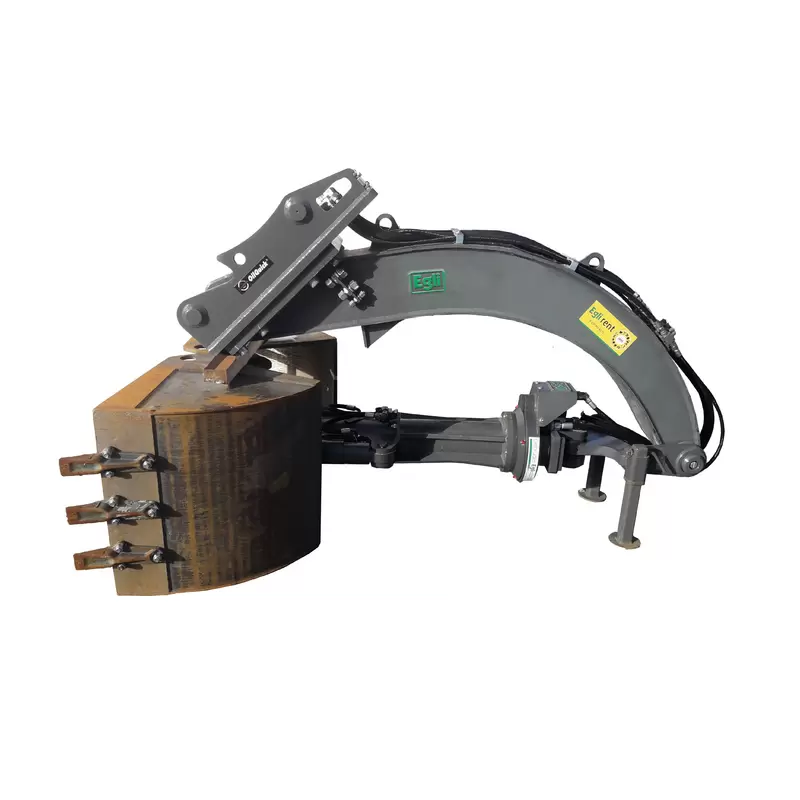

Pendulum grab

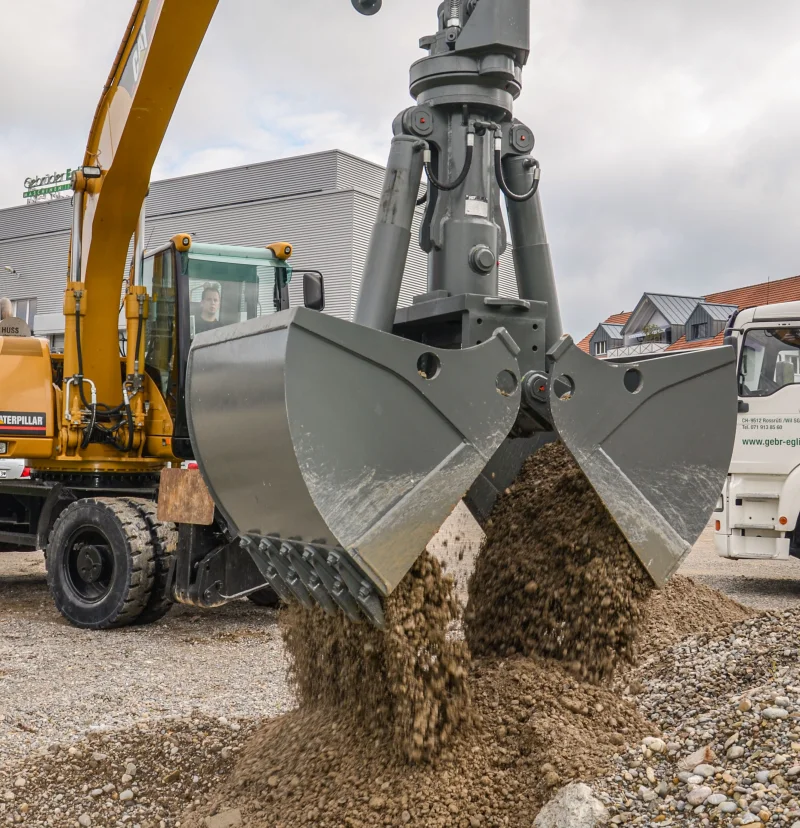

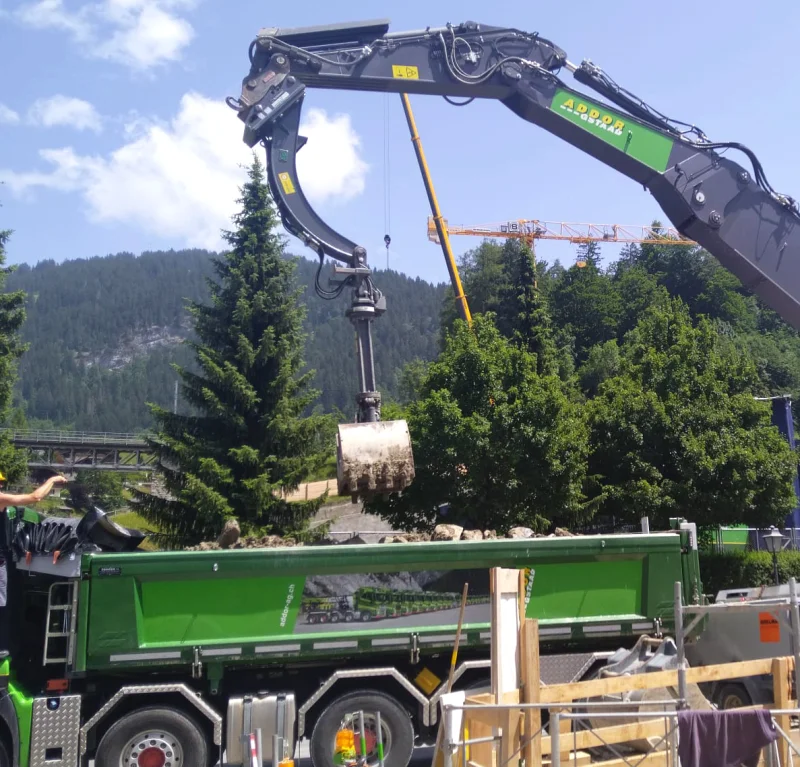

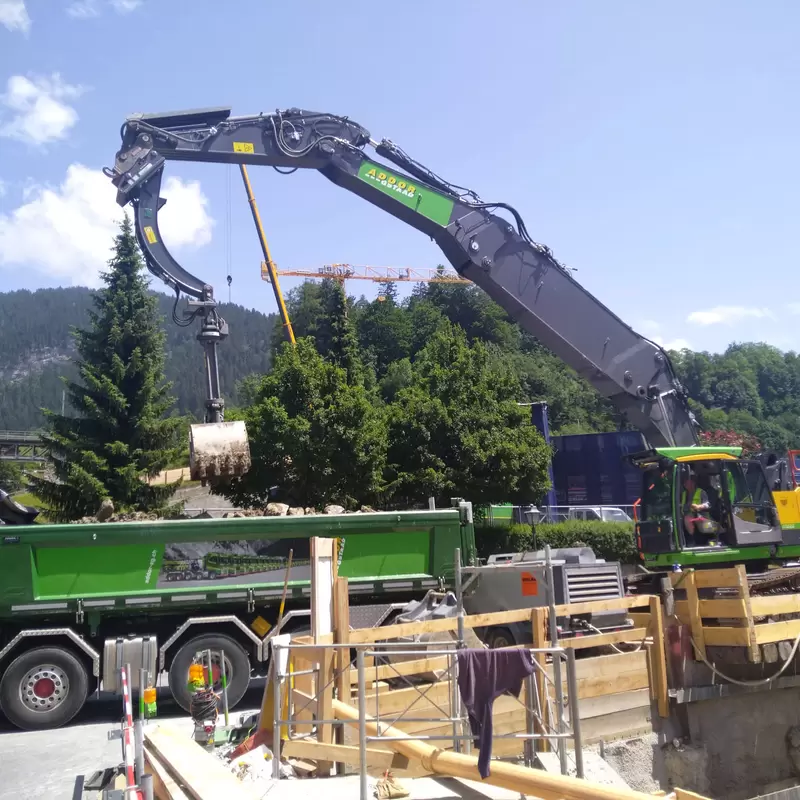

This pendulum grab is a versatile civil engineering grab for typical hydraulic excavator operation. It is suitable for excavating and dredging natural soils, digging trenches and cable ducts, loading soil, gravel and sand and lifting objects of all kinds.
-
-
-
- Turn on Javascript!
| Attachment | Excavator class |
| Egli pendulum grab | 5 - 30 t |
- attachment point for the grapple's gimbal suspension
- support legs
- rotary motor with double safety valve
- hose protection plate for the rotator drive motor
- easily accessible lufrication points throughout
- shells with shell supports that are interchangeable across the entire range thanks to a 3-points interlocking system
- piston rod protection
- side and bottom blades made from high-strength fine-grained steel (HB 450)
- mechanical opening stop
- with or without bolted teeth
Your benefit as a customer
Whilst your grapples are undergoing maintenance, all models in our rental park are available to you on request to help you minimise any disruption.
